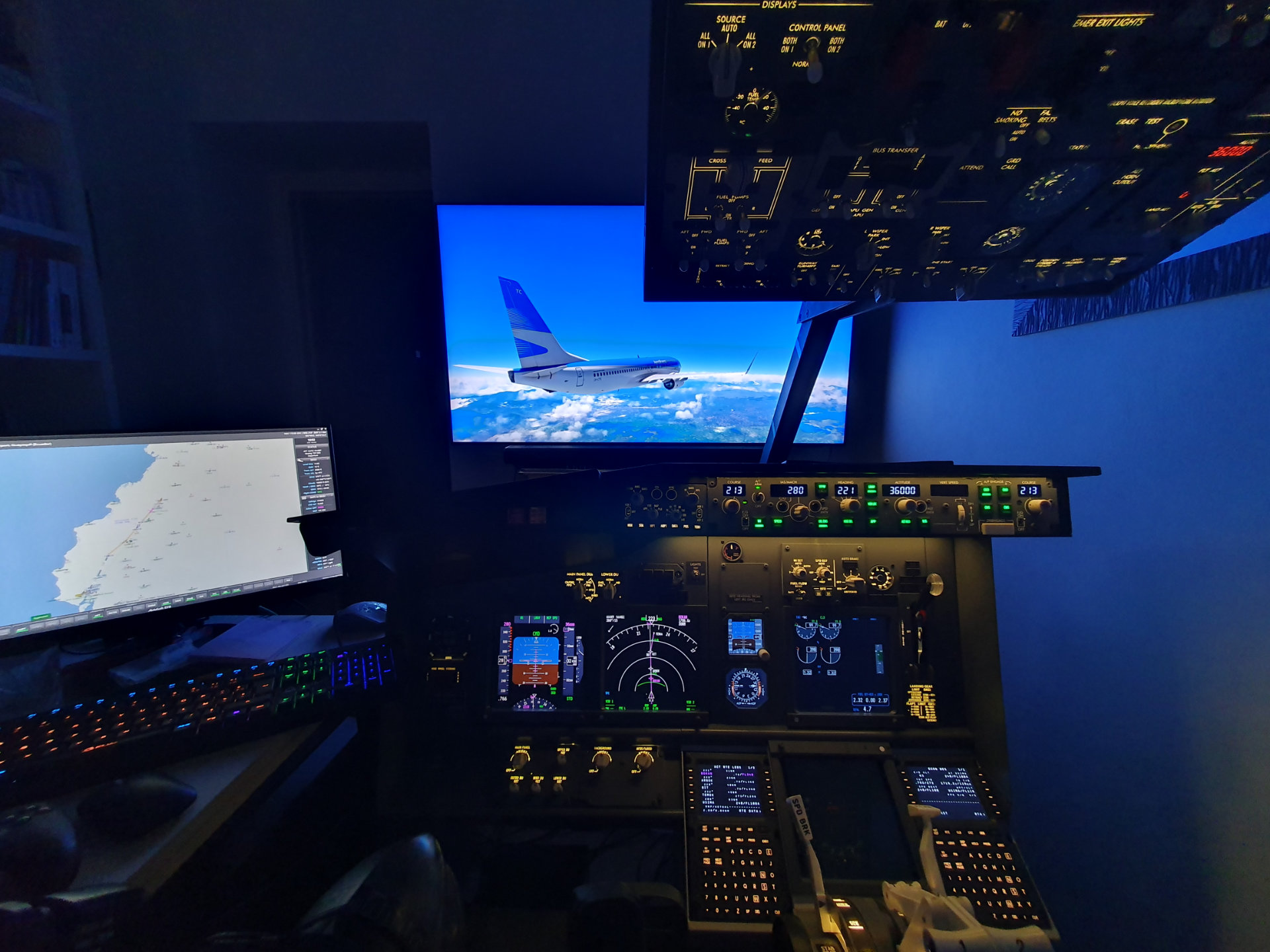

Virtual Cockpit B738 (Single Seat) - MSFS 2020
(ProSim V3.33b9 + FM 2.16)

As of 2025/02/03

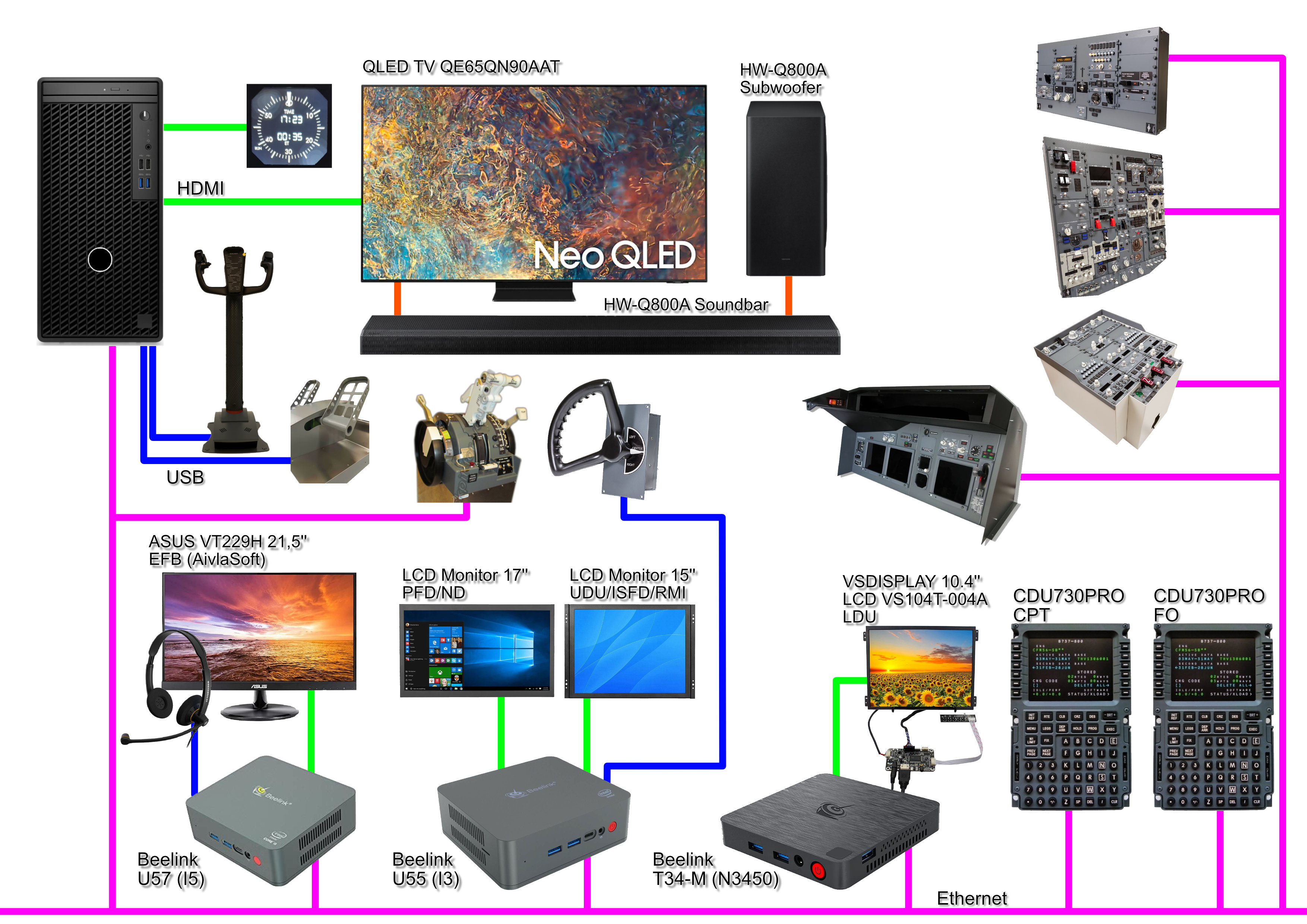

Main Computer Wiseco 4 Inch Square LCD Display 480x480 (Captain Clock) Samsung Neo QLED 4K QN90A 2021 as main display Samsung Soundbar HW-Q800A 3.1.2ch for MSFS 2020 Audio (including ProSim engines sounds and Immersion Soundpack) Sismo Soluciones AFT Overhead Ethernet Alpha V3 Sismo Soluciones FWD Overhead Ethernet Alpha V4 Sismo Soluciones Pedestal Ethernet Alpha V3.1 Sismo Soluciones Single MIP Ethernet, MCP and EFIS CPflight CDU737PRO VSDISPLAY 10.4 inches 1024X768 600 nit (LDU) Beelink Mini PC T34-M 4G Beelink U55 Mini PC 8 GO SSD 256 GO (Intel Core I3-5005U @ 2.40 GHz) Shenzhen Zhixianda Technology Co.,Ltd LCD Monitor 15 inches (UDU, ISFD and RMI) Shenzhen Zhixianda Technology Co.,Ltd LCD Monitor 17 inches (PFD/ND) Beelink U57 Mini PC 8 GO SSD 256 GO (Intel Core I5-5275U @ 2.20 GHz) Sennheiser HD 250BT ASUS VT229H (TouchScreen) as EFB Schiller Metalle Tiller Cockpit-For-You B737 Throttle Quadrant Motorised V4 Gold Plus Brunner CLS-E MK II Rudder Agronn B737 Captain Yoke Single Type B

Want to build yours?

Start from here: FLAPS 2 APPROACH - Boeing 737 Simulation Project.



Sismo Soluciones Plug&Fly Modules

Oct. 2020

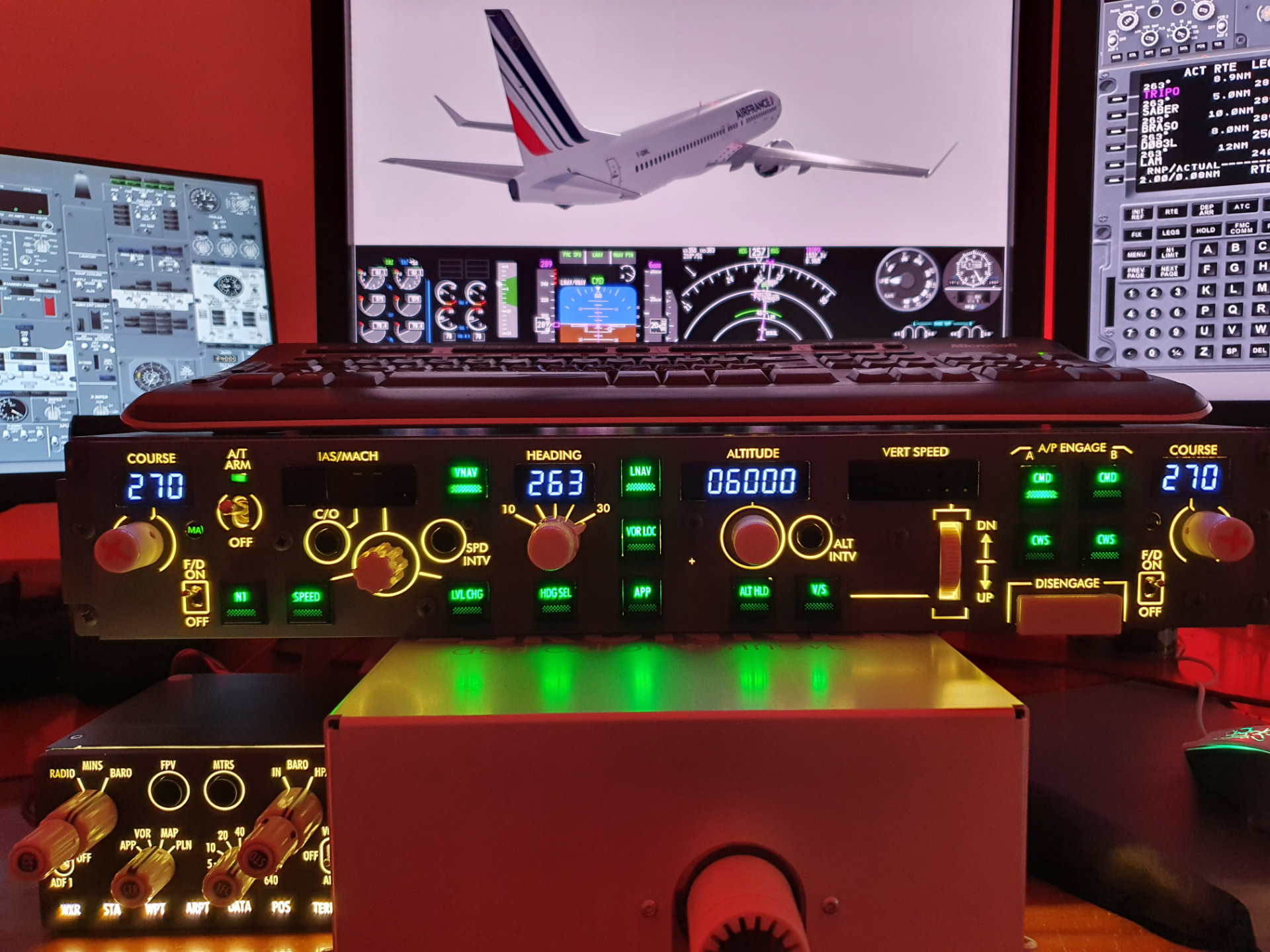

  • MCP Module Ethernet V4.5 - Line: Alpha
  • EFIS Module

Sep. 2021

  • Pedestal Ethernet Alpha V3.1
  • ADF Single Panel Module Alpha V4
  • FWD Overhead Ethernet Alpha V4
  • AFT Overhead Ethernet Alpha V3
  • B737 Cockpit Overhead Metallic Structure for Single Configuration V2

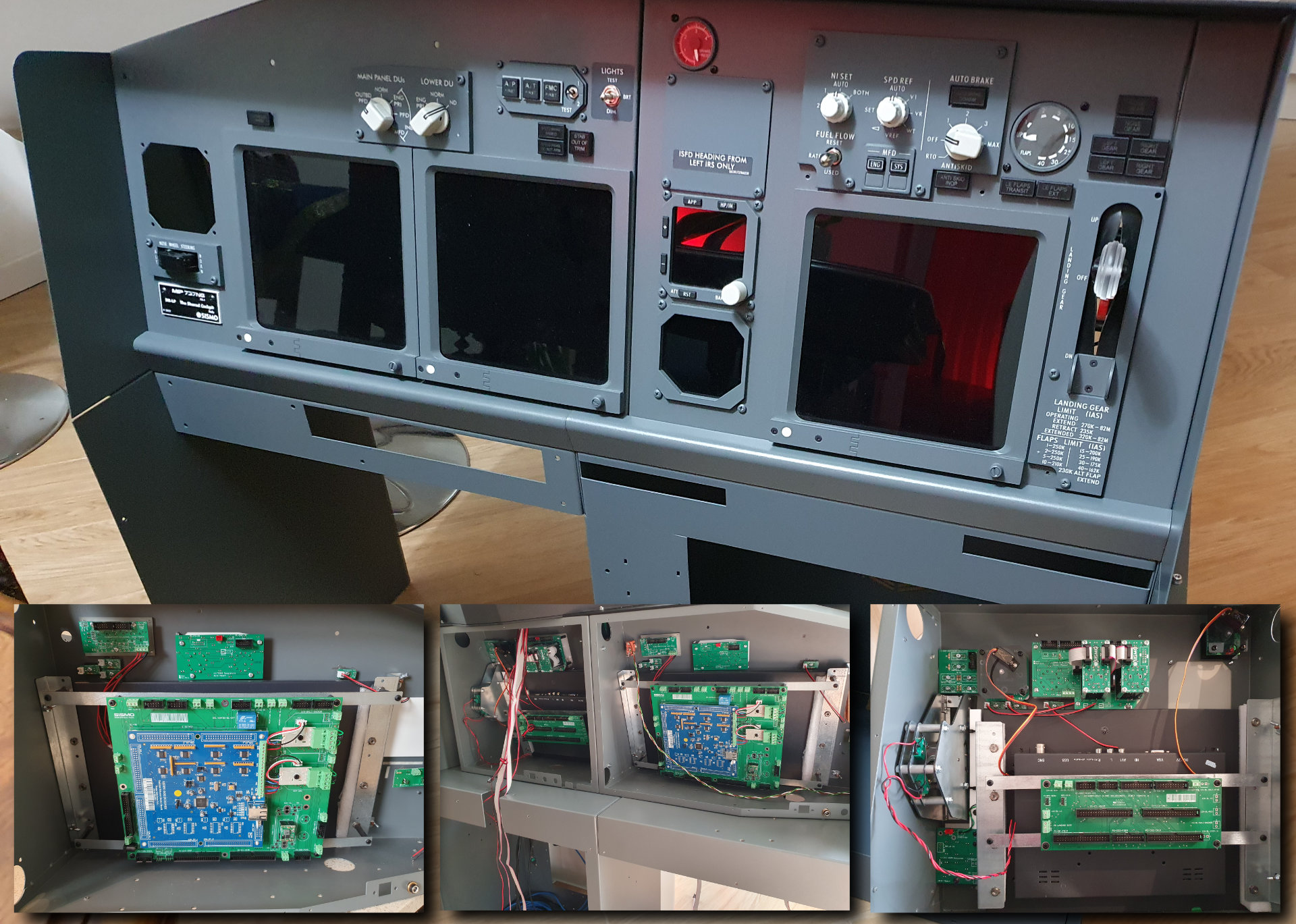

Sismo Soluciones Components

Mar. 2022

  • Center Main Instrument Casing
  • Captain Main Instrument Casing
  • Standby Radio Magnetic Indicator (RMI) Bezel
  • Integrated Standby Flight Display (ISFD) Bezel
  • Standby Blind Plate
  • Nose Wheel Steering Module (NWS)
  • Metallic Display Bezel
  • Display Smoke Glass
  • Aluminium Glareshield for MIP in Single Configuration
  • Captain Brightness Control Module (CBC)
  • Background and AFDS Flood Light Control Module (BALC)
  • Ground Proximity Warning System Module (GPWS)

Apr. 2022

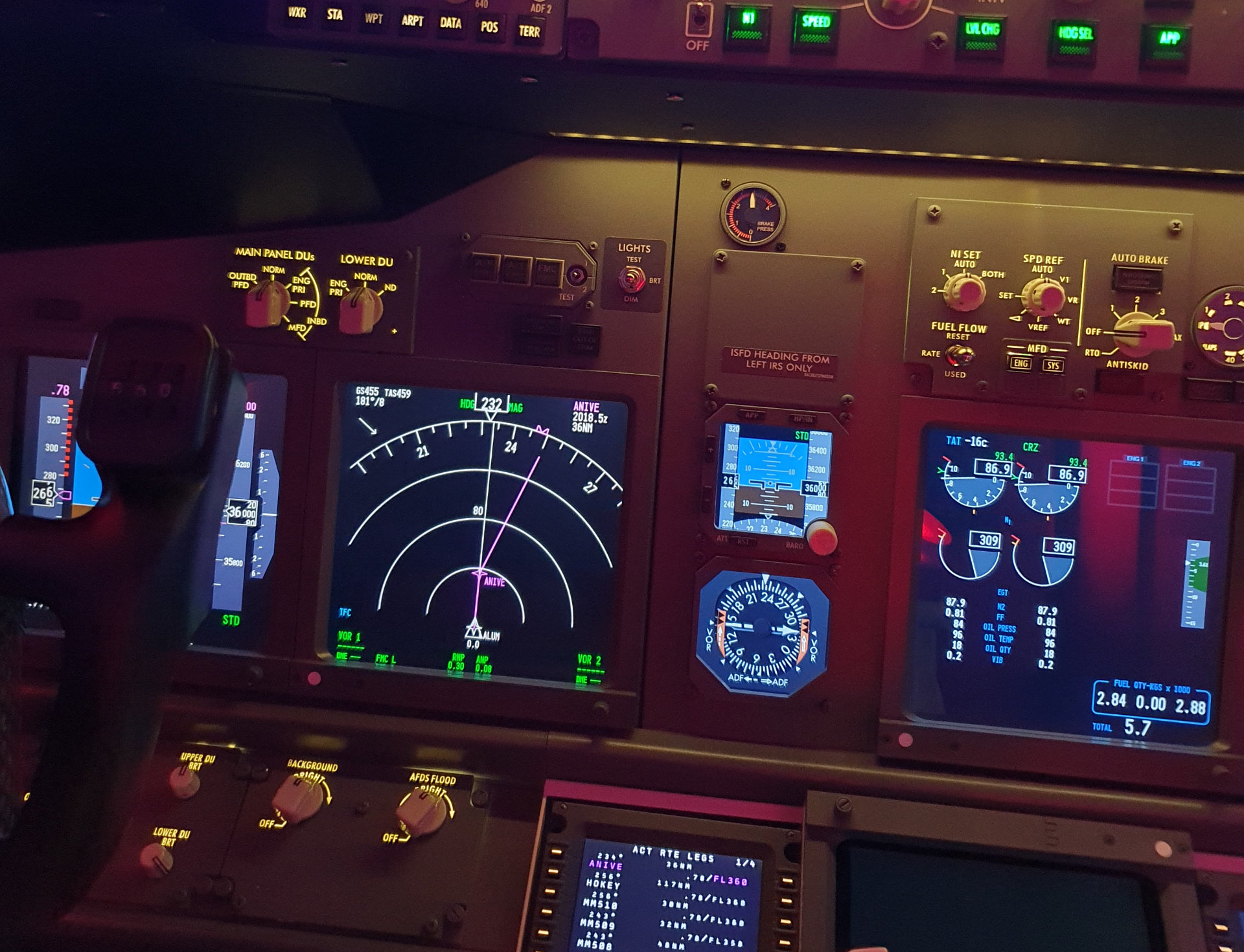

  • CDU Bay with TFT 10.4" V1.1
  • Metallic Display Bezel V1
  • Display Smoke Glass V1
  • Dummy Clock V1.1

Sep. 2022

  • Captain SixPack Module + Master Pushbuttons Alpha V2.1
  • Captain Display Selector Module (DS) Alpha V3
  • MIP Light Test Module V1
  • Captain Instrument Panel Annunciators Kit (3 units) V1
  • Autopilot Flight Director System Module (AFDS) Alpha V4
  • Stab Out of TRIM Annunciator V1
  • Captain Glarewing V3
  • HBP Gauge with backlighting - mini V1
  • Engine Display Control Module (EDC) V3.6 Customized
  • FLAPS Gauge with backlighting V2.3
  • Center Instrument Panel Annunciators Kit (9 units) V1
  • Landing Gear Lever V1
  • MIP Captain Side Electronic Baseplate V4
  • MIP Center Side Electronic Baseplate V3.5
  • MIP F/O Side Electronic Baseplate V3.6B
  • CAIP/CEIP/FOIP Flat Cables Kit V1
  • SELCAL ID Panel V1.1
  • CAIP‑FOIP Do Not Extend Sticker
  • Flight Deck Lighting under Glareshield V2
  • MCP/EFIS Lighting under Glareshield V2

The entire cockpit is powered by 2 x 350 W Single Output Switching Power Supply LRS‑350‑12.



CPflight Plug&Fly Modules

Agronn

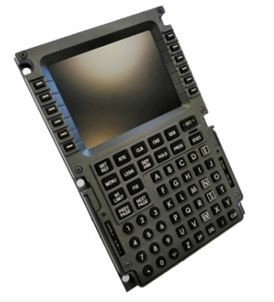

  • 2 CDU737PRO (Ethernet)


Flight Controls

  • Cockpit-For-You B737 Throttle Quadrant Motorised V4 Gold Plus
  • Agronn B737 Captain Yoke Single Type B
  • Brunner CLS-E MK II Rudder with Brakes

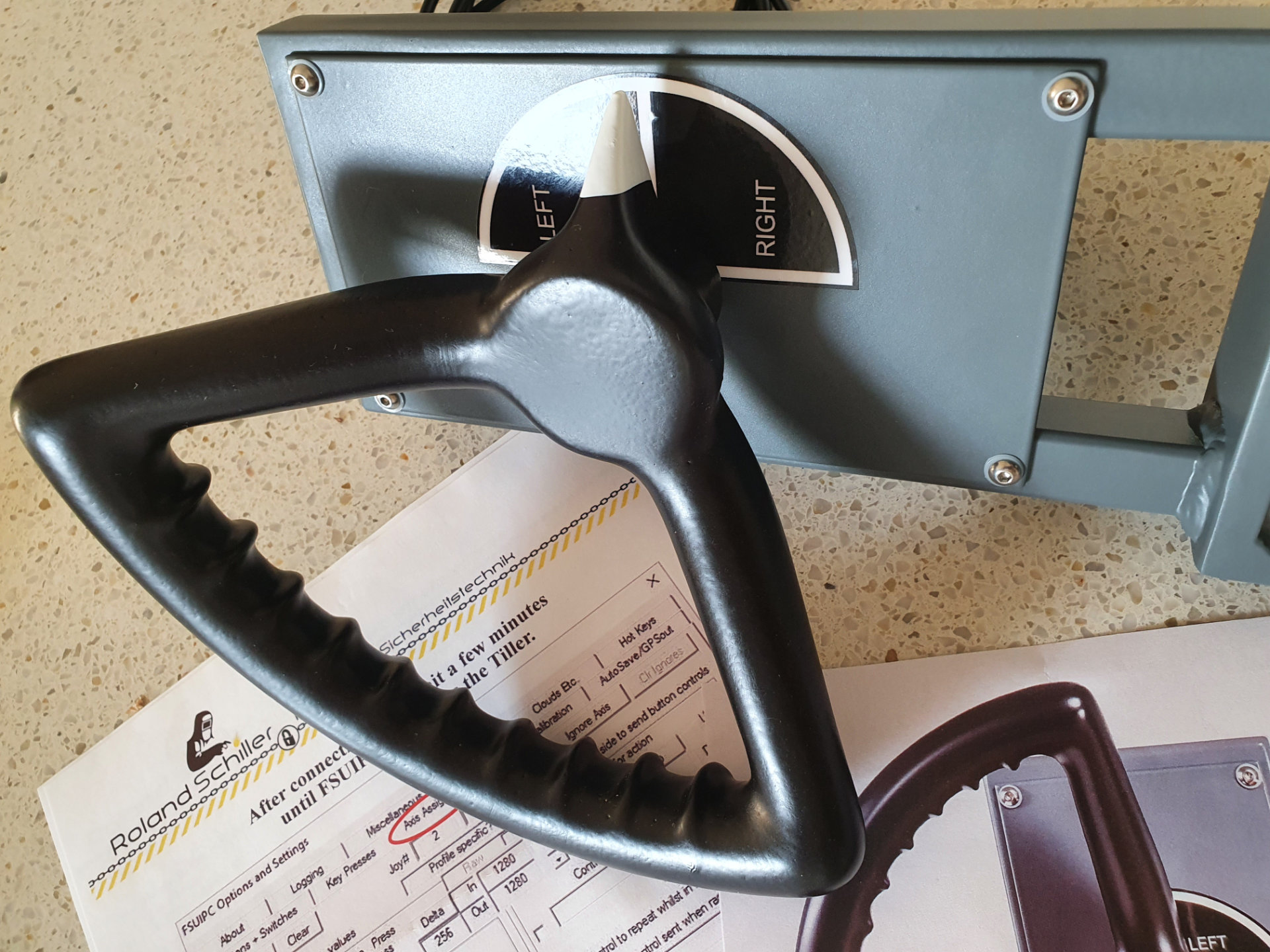

  • Schiller Metalle Tiller

Spare Parts

  • FlightSim PM 737 Throttle Quadrant v2.4

Captain seat

  • Opencockpits B737 Pilot Seat Captain…


Monitors

  • Samsung Neo QLED 4K QN90A 2021 as main display
  • ASUS VT229H (TouchScreen) as EFB (AivlaSoft Client)
  • ASUS VP227HE (Discord, FMC Assistant)
  • Shenzhen Zhixianda Technology Co.,Ltd LCD Monitor 15" (UDU, ISFD and RMI)
  • Shenzhen Zhixianda Technology Co.,Ltd LCD Monitor 17" (PFD/ND)
  • VSDISPLAY 10.4" 1024X768 600 nit (LDU)

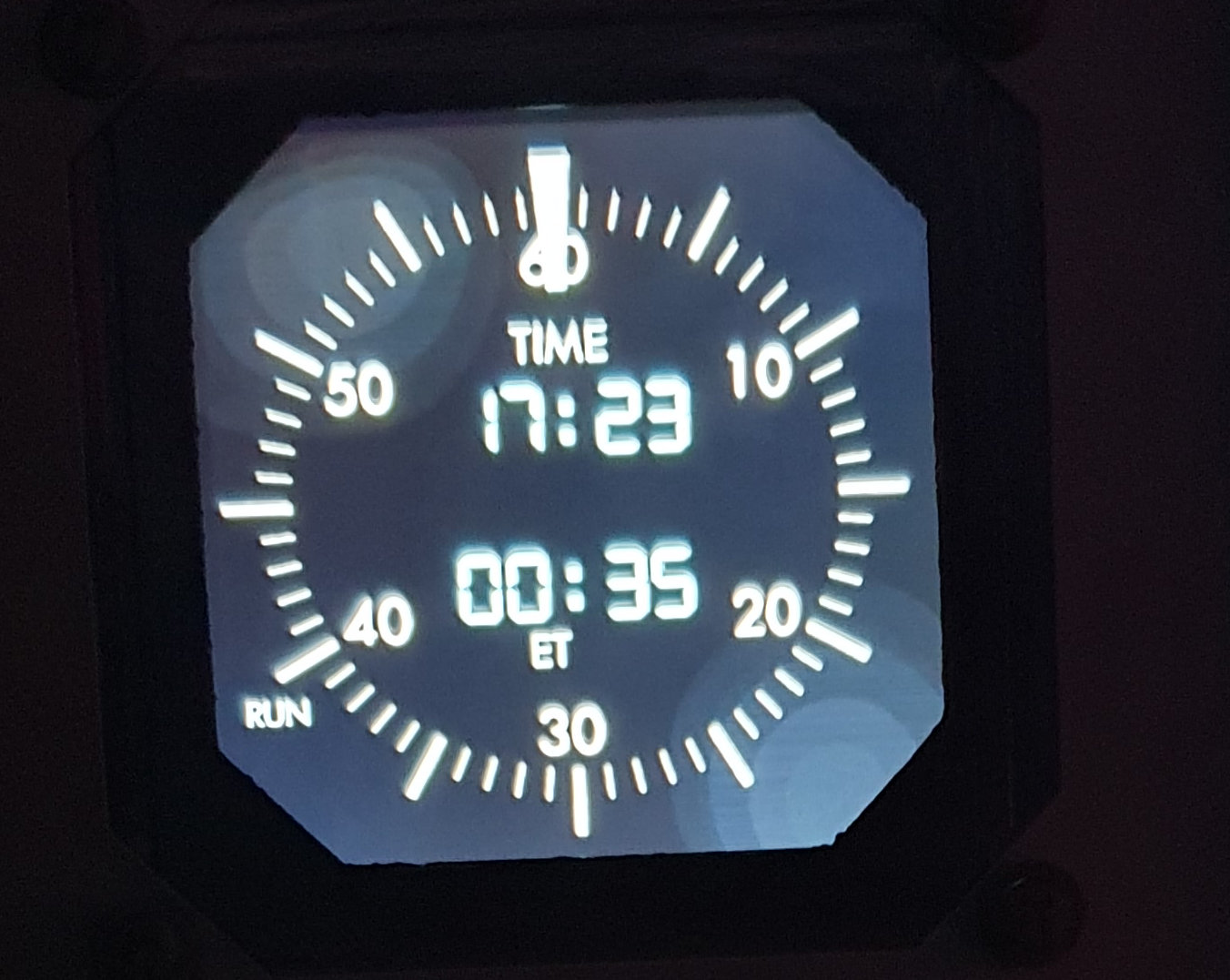

  • Wiseco 4 Inch Square LCD Display 480x480 (Captain Clock)

Loud Speakers and Headset

  • Samsung Soundbar HW-Q800A 3.1.2ch (MSFS 2020 Audio including ProSim engines & Immersion Soundpack sounds and SimSounds sounds)
  • Sennheiser EPOS 160T USB (VATSIM / IVAO / Discord)


MSFS 2020 Computer

(Microsoft Flight Simulator 2020, FSUIPC 7, CFY Console, ProSimB738,vmsACARS, SimSounds 5.0, FS-ATC Chatter, AivlaSoft Server)

Aug. 2022

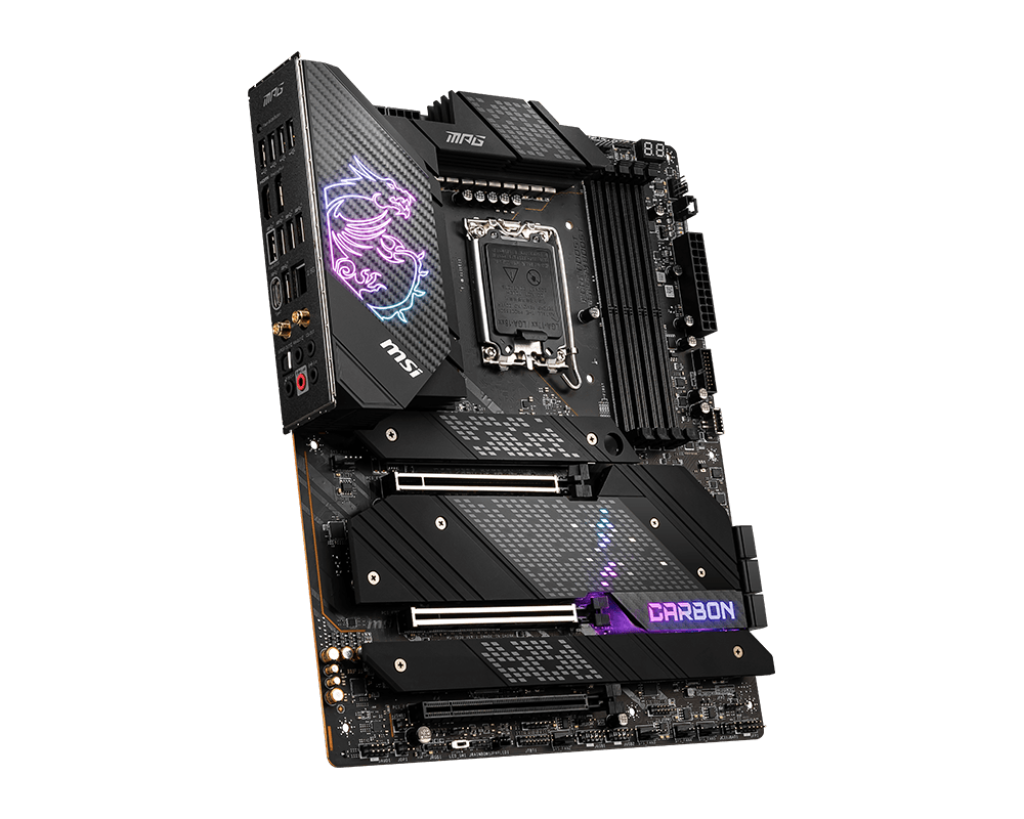

  • MSI MPG Z690 Carbon WiFi LGA1700, Intel Z690
  • Intel i7 Processor i7-12700K 3,60Ghz Alder Lake-S
  • DIMM DDR5 32GB Kingston Fury 6000Mhz K2 CL40 (KF560C40BBK2-32)
  • Samsung 980 PRO NVMe M.2 SSD, 1 TB (System)
  • Samsung 970 EVO Plus NVMe M.2 SSD, 1 TB (MSFS 2020)
  • Samsung 970 EVO Plus NVMe M.2 SSD, 2 TB (Sceneries)
  • Samsung 970 EVO Plus NVMe M.2 SSD, 500 GB (Garbage)
  • NVIDIA GeForce RTX 3090 Ti
  • Windows 11 Pro Version 24H2 Build 26120.3073
  • Power Supply be quiet! Straight Power 11 850 W Gold
  • Dark Rock Pro 4
  • Case be quiet! Silent Base 801

  • XBOX Controller (Drone mode and External views)


Additional Beelink Mini Computers

  • Beelink T34-M 4G Mini PC, Intel Celeron N3450 1.10 GHz
    (LDU, CPT CDU, FO CDUs)
  • Beelink U55 Mini PC 8 GO SSD 256 GO, Intel Core I3-5005U @ 2.40 GHz
    (CPT PFD/ND & UDU, Hardware Connector Tiller)
  • Beelink U57 Mini PC 8 GO SSD 256 GO, Intel Core I5-5275U @ 2.20 GHz
    (AivlaSoft Client, ProSim Audio 1, ProSim IOS, JoinFS Server, Discord WebCam stream and Audio)

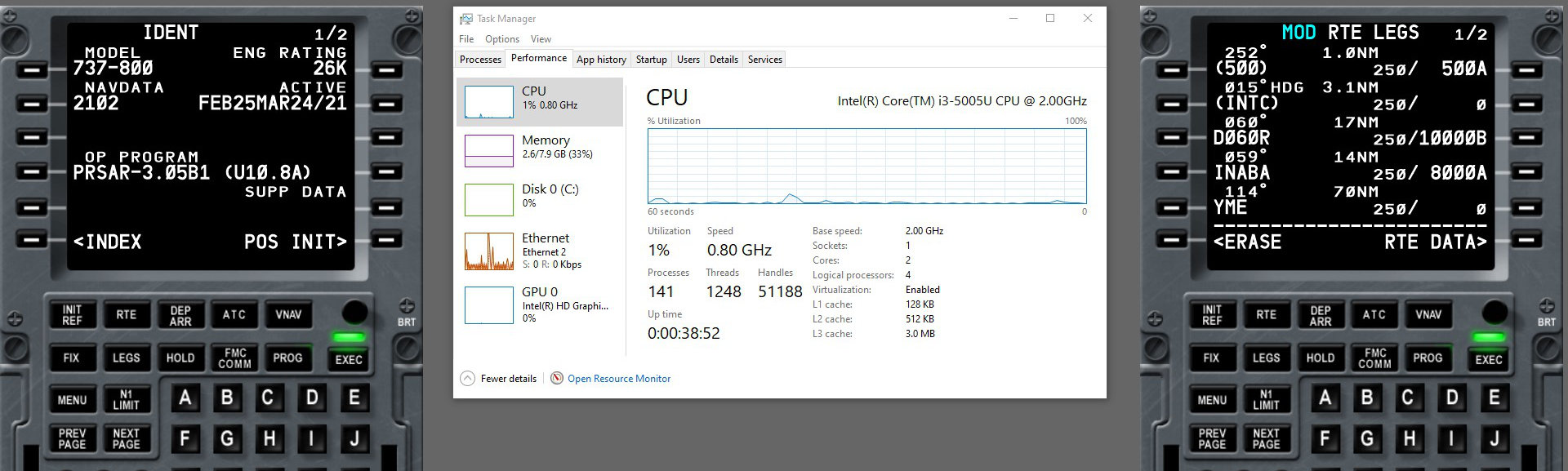

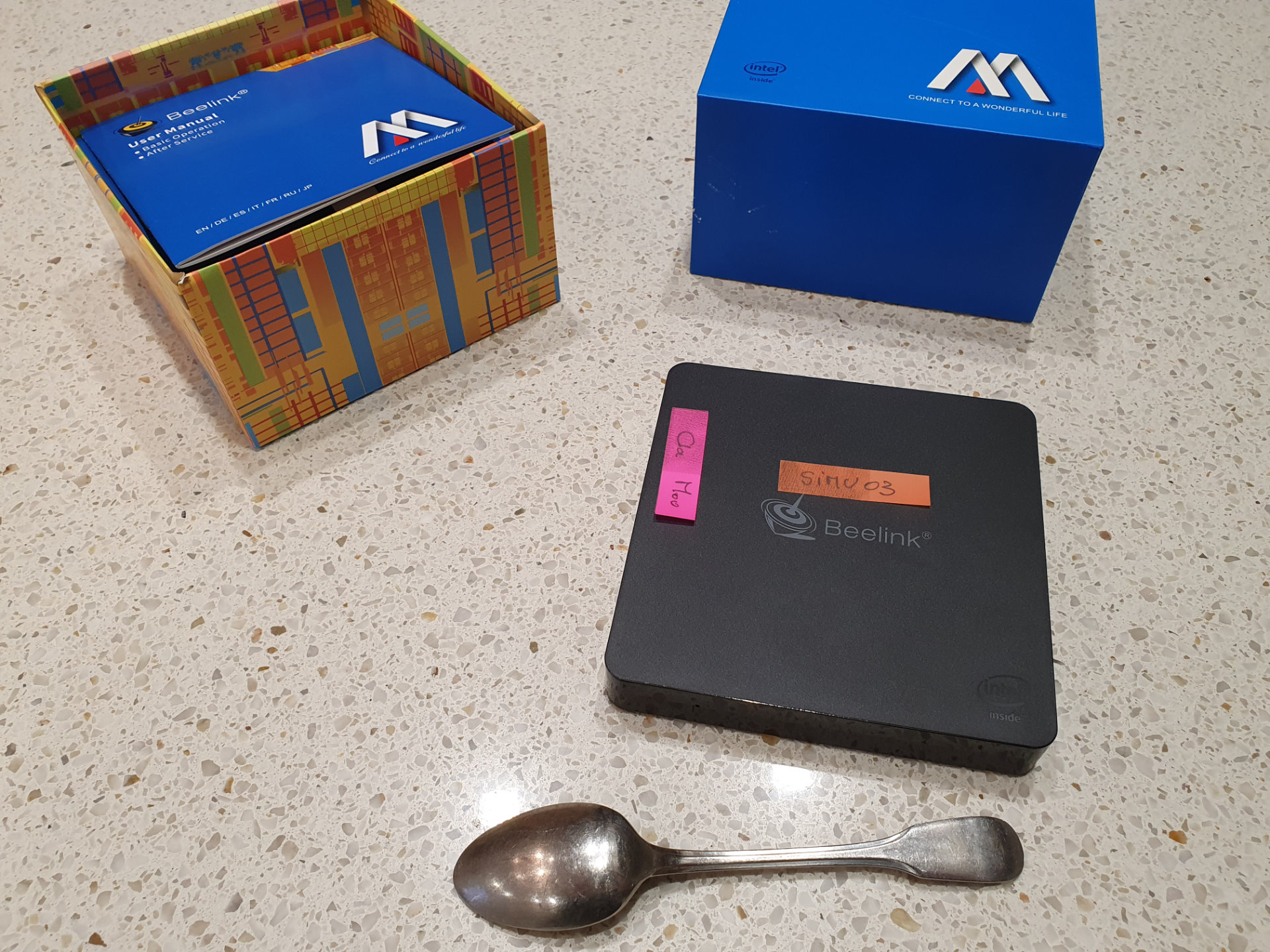

Beelink Mini PC T34-M 4G easily manage 2 CDU



Additional Software

MSFS 2020 Addons

  • Aerosoft VGDS
  • AIG AI Manager & (AI Traffic & liveries)
  • Bijan Habashi Seasons
  • FS Playground (flight recorder and replay)
  • Some sounds from « Immersion Soundpack »
  • NOOL VGDS
  • Zinertek Enhanced Airports Graphics
