Virtual Cockpit B738 (Single Seat)
MSFS 2020/24 - PMDG 737-800

Oct. 2020

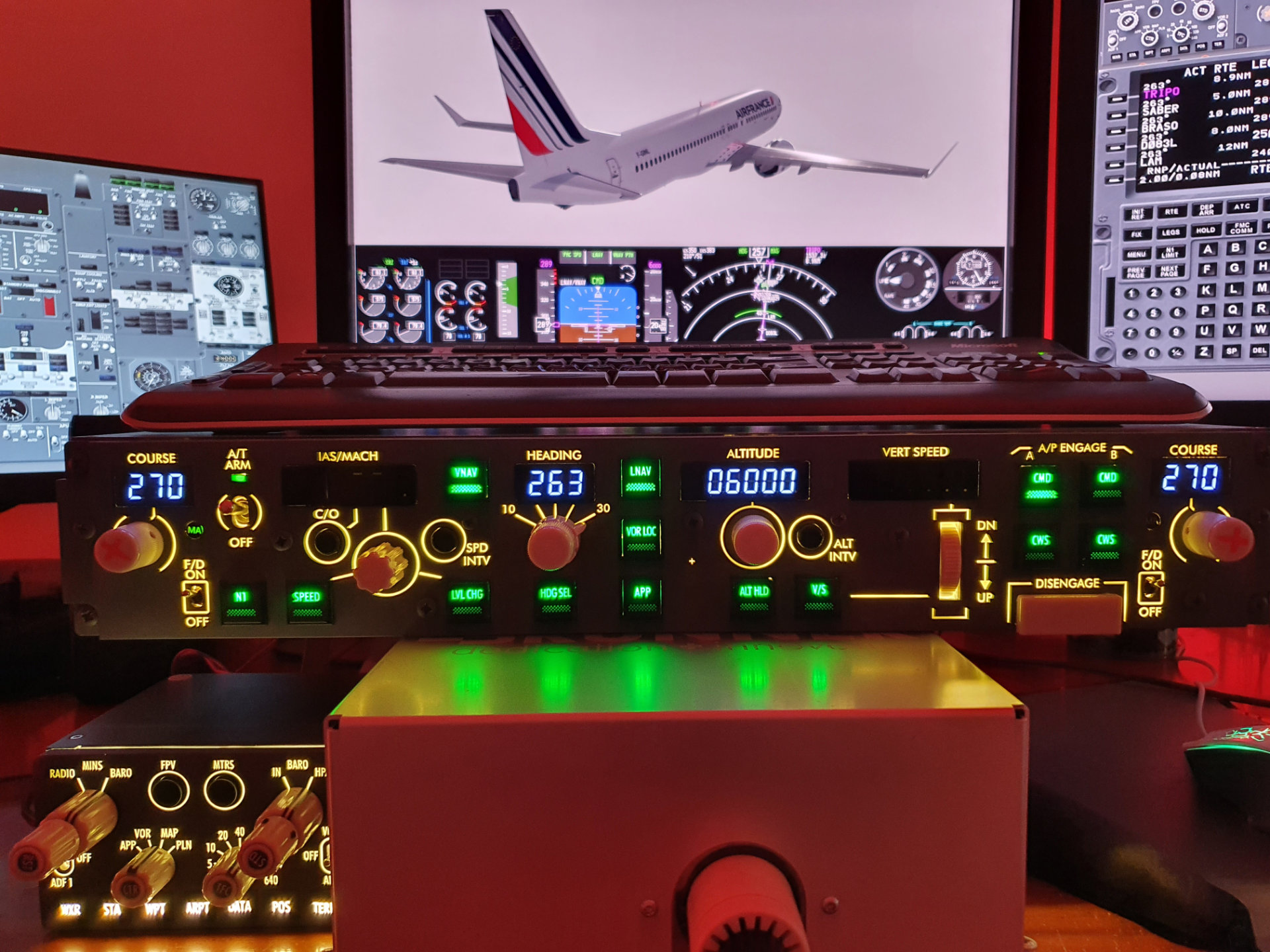

• MCP Module Ethernet V4.5 - Line: Alpha
• EFIS Module

Sep. 2021

• Pedestal Ethernet Alpha V3.1
• ADF Single Panel Module Alpha V4
• FWD Overhead Ethernet Alpha V4 (Sold during 2026)
• AFT Overhead Ethernet Alpha V3 (Sold during 2026)
• B737 Cockpit Overhead Metallic Structure for Single Configuration V2

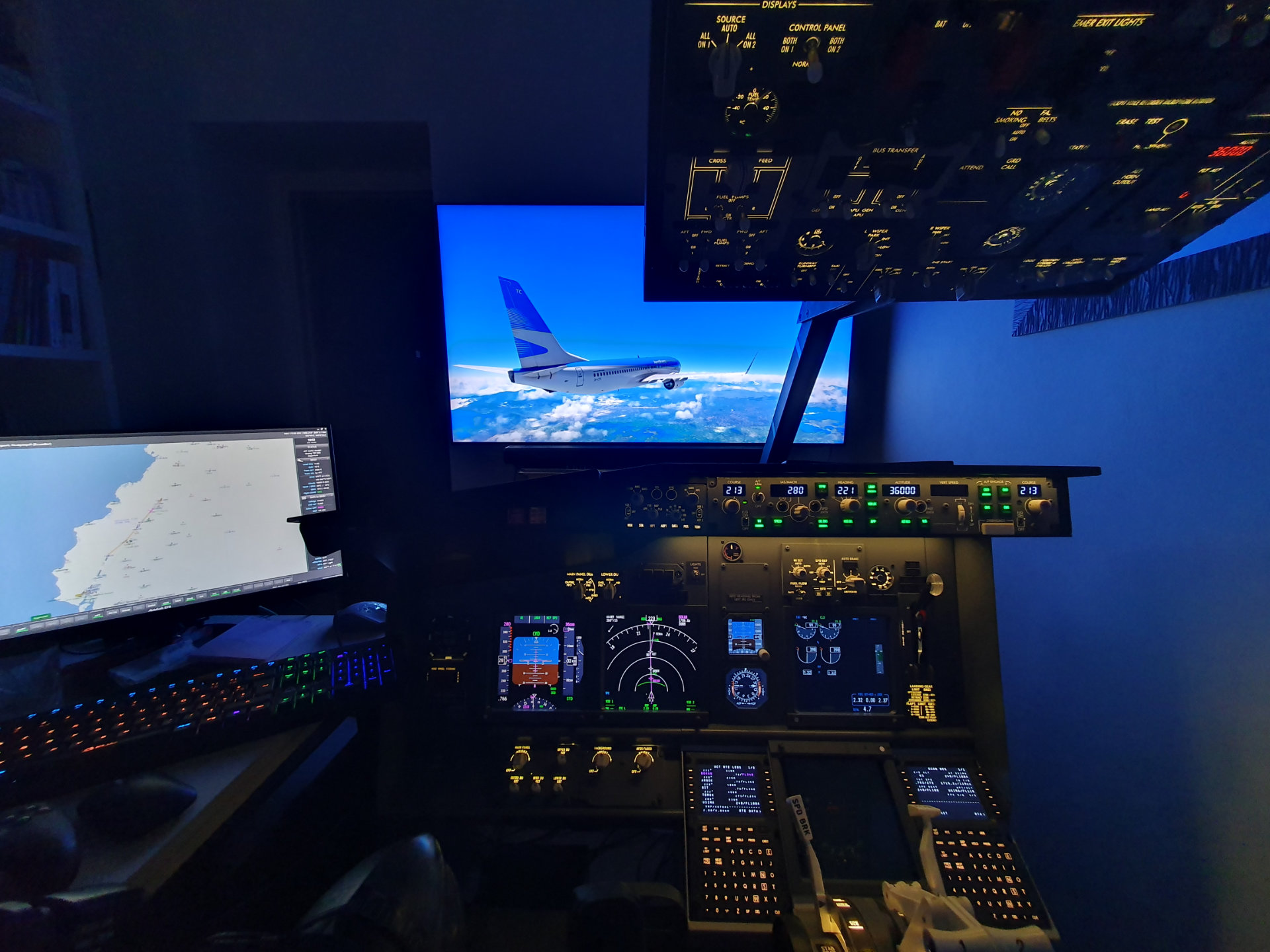

Sismo Soluciones Components

Mar. 2022

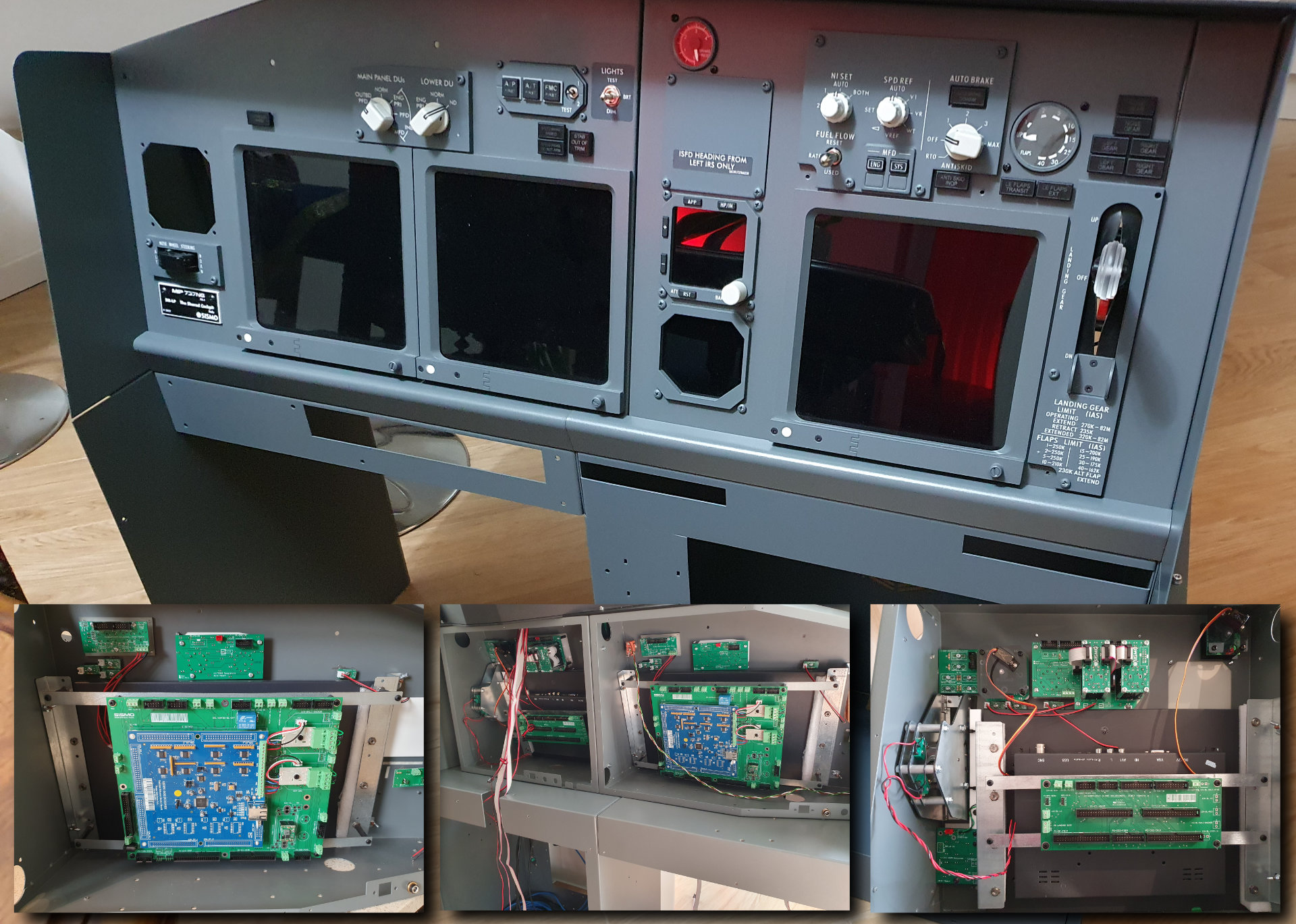

• Center Main Instrument Casing
• Captain Main Instrument Casing
• Standby Radio Magnetic Indicator (RMI) Bezel
• Integrated Standby Flight Display (ISFD) Bezel
• Standby Blind Plate
• Nose Wheel Steering Module (NWS)
• Metallic Display Bezel
• Display Smoke Glass
• Aluminium Glareshield for MIP in Single Configuration
• Captain Brightness Control Module (CBC)
• Background and AFDS Flood Light Control Module (BALC)
• Ground Proximity Warning System Module (GPWS)

Apr. 2022

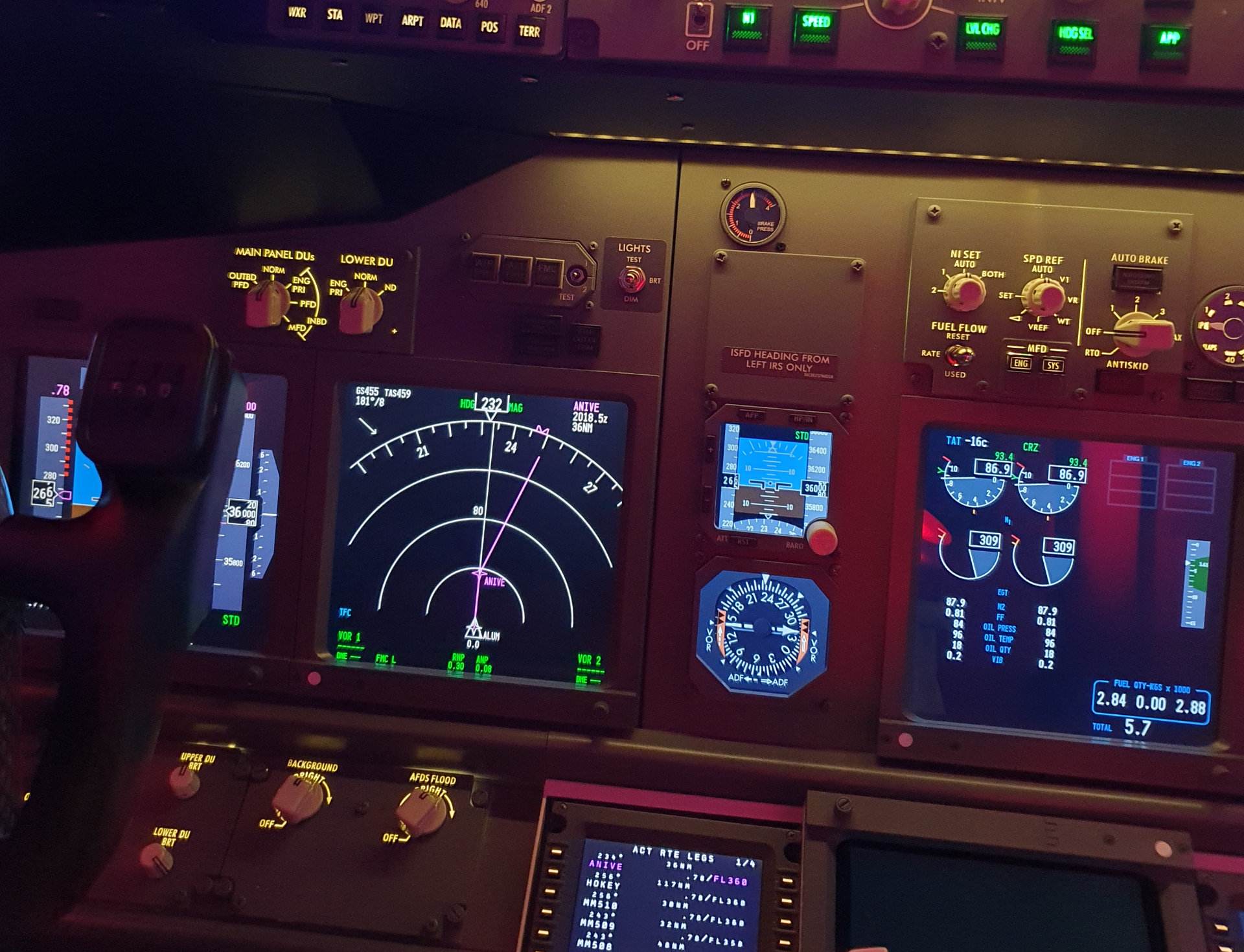

• CDU Bay with TFT 10.4" V1.1
• Metallic Display Bezel V1
• Display Smoke Glass V1
• Dummy Clock V1.1

Sep. 2022

• Captain SixPack Module + Master Pushbuttons Alpha V2.1
• Captain Display Selector Module (DS) Alpha V3
• MIP Light Test Module V1
• Captain Instrument Panel Annunciators Kit (3 units) V1
• Autopilot Flight Director System Module (AFDS) Alpha V4
• Stab Out of TRIM Annunciator V1
• Captain Glarewing V3
• HBP Gauge with backlighting - mini V1
• Engine Display Control Module (EDC) V3.6 Customized
• FLAPS Gauge with backlighting V2.3
• Center Instrument Panel Annunciators Kit (9 units) V1
• Landing Gear Lever V1
• MIP Captain Side Electronic Baseplate V4
• MIP Center Side Electronic Baseplate V3.5
• MIP F/O Side Electronic Baseplate V3.6B
• CAIP/CEIP/FOIP Flat Cables Kit V1
• SELCAL ID Panel V1.1
• CAIP‑FOIP Do Not Extend Sticker
• Flight Deck Lighting under Glareshield V2
• MCP/EFIS Lighting under Glareshield V2

The entire cockpit is powered by 2 x 350 W Single Output Switching Power Supply LRS‑350‑12.

Agronn

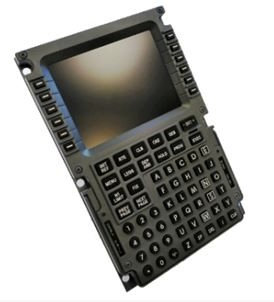

• 2 CDU737PRO (Ethernet)

• Cockpit-For-You B737 Throttle Quadrant Motorised V4 Gold Plus
• Agronn B737 Captain Yoke Single Type B
• Brunner CLS-E MK II Rudder with Brakes
• Schiller Metalle Tiller

Spare Parts

• FlightSim PM 737 Throttle Quadrant v2.4

Captain seat

• Opencockpits B737 Pilot Seat Captain…

• Samsung Neo QLED 4K QN90A 2021 as main display
• ASUS VT229H (TouchScreen) as EFB (AivlaSoft Client)
• ASUS VP227HE (Discord, FMC Assistant)
• Shenzhen Zhixianda Technology Co.,Ltd LCD Monitor 15" (UDU, ISFD and RMI)
• Shenzhen Zhixianda Technology Co.,Ltd LCD Monitor 17" (PFD/ND)
• VSDISPLAY 10.4" 1024X768 600 nit (LDU)
• Wiseco 4 Inch Square LCD Display 480x480 (Captain Clock)

Loud Speakers and Headset

• Samsung Soundbar HW-Q800A 3.1.2ch (MSFS 2020/24 Audio including ProSim engines & Immersion Soundpack sounds and SimSounds sounds)
• Sennheiser EPOS 160T USB (VATSIM / IVAO / Discord)

Aug. 2022

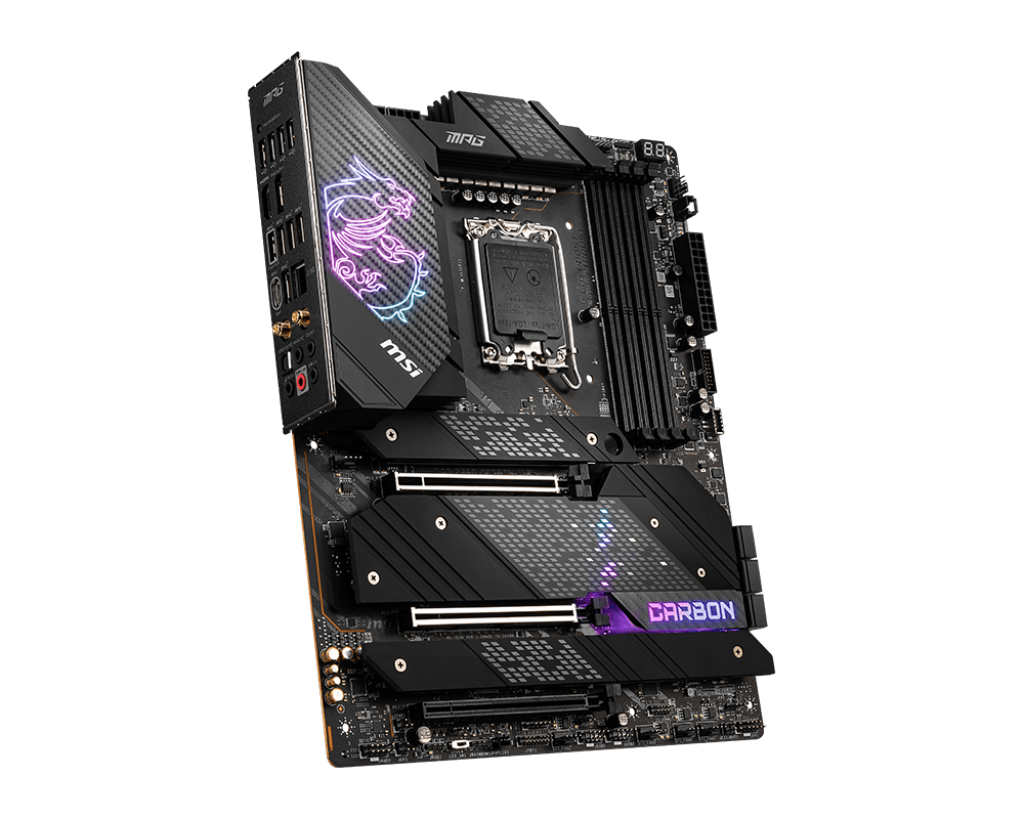

• MSI MPG Z690 Carbon WiFi LGA1700, Intel Z690
• Intel i7 Processor i7-12700K 3,60Ghz Alder Lake-S
• DIMM DDR5 32GB Kingston Fury 6000Mhz K2 CL40 (KF560C40BBK2-32)
• Samsung 980 PRO NVMe M.2 SSD, 1 TB (System)
• Samsung 970 EVO Plus NVMe M.2 SSD, 1 TB (MSFS 2020/24)
• Samsung 970 EVO Plus NVMe M.2 SSD, 2 TB (Sceneries)
• Samsung 970 EVO Plus NVMe M.2 SSD, 500 GB (Garbage)
• NVIDIA GeForce RTX 3090 Ti
• Windows 11 Pro Version 24H2 Build 26120.3073
• Power Supply be quiet! Straight Power 11 850 W Gold
• Dark Rock Pro 4
• Case be quiet! Silent Base 801

• XBOX Controller (Drone mode and External views)

• Beelink U57 Mini PC 8 GO SSD 256 GO, Intel Core I5-5275U @ 2.20 GHz
  (AivlaSoft Client, Sim Innovations Air Player for Overheads, Discord WebCam stream and Audio)

Additional Software

• AivlaSoft EFB v2.1
• FS-ATC Chatter 1.2.x
• FMC Assistant (Personal software)
• FSUIPC 7 by Pete & John Dowson
• LIDO Charts (Flight Planner)
• Little Navmap & SimBrief
• Navigraph AIRAC cycles
• phpVMS 7.0 (VA Management) & vmsACARS
• Sim Innovations Air Manager (ISFD, RMI)

MSFS 2020 / MSFS 2024 Addons

• Aerosoft VGDS, Aerosoft Toolbar Pushback Pro
• Just Flight FS Traffic (AI Traffic & liveries)
• Bijan Habashi Seasons
• CLS2Sim BRUNNER Elektronik AG
• FS Playground (flight recorder and replay)
• Active Sky FS
• MSFS Pop Out Panel Manager (Github hawkeye-stan)
• NOOL VGDS
• Zinertek Enhanced Airports Graphics

Each PMDG airplane (livery) must be configured accordingly to Sismo Soluciones harware (Overheads and Pedestal radios).

To achive that goal, all liveries are configured this way:

[Displays]
Glass_PFD_ND=1
PFD_low_airspeed_alert=1
PFD_groundspeed_displayed=1
PFD_Vref_plus_20_bug=1
PFD_100knot_bug=1
PFD_rising_runway=1
PFD_split_axis_flight_director=1
PFD_pitch_limit_indicator_popup=1
PFD_radio_altitude_round_dial=0
PFD_angle_of_attack_dial=1
PFD_landing_altitude_bar=1
PFD_2500_height_alert=1
PFD_show_landing_flaps=1
PFD_integral_heading_scale=1
ND_trackUp=1
ND_VOR_course_lines_displayed=1
ND_VerticalSituationDisplay=1
ND_MinimumRunwayLength=5000
ND_RangeArcs=1
ND_TCAS_RangeRing=1
ND_ActWptData=1
PFD_ND_NPS=1
Engines_SideBySideDisplay=0
Engines_ColorChangeInhibit_5minutes=0
Engines_ColorChangeInhibit_10minutes=0
Engines_LowOilQuantityInverseVideo=1
Engines_HighVibrationAlert=1
Engines_ShowRefN1=2
Engines_ShowOilQPercentage=1
Engines_ShowMaxContLines=1
Fuel_LowAlertBelow1000lbs=0
Fuel_TOTALDisplay=1
MFD_FlightControlSurfacesIndicator=1
MFD_BrakeTemperatureIndicator=1

[Engines]
Engines_DoubleDerate=1
Engines_TOBump=1

[MCP]
MCPType=1

[AFS]
WingsLevelatTO=1
AllowGSCaptureBeforeLoc=0
AllowAuroArmLNAVMA=1
RollOutEnabled=0

[FMS]
DefaultAccelHeight=1500
DefaultEOAccelHeight=800
DefaultReductionAlt=1500
DefaultCutBackAlt=800
DefaultRestoreAlt=3000
DefaultTransAlt=18000
DefaultTransLevel=18000
MaxFixPages=6
DesUnderSpdMargin=

[FMCDatalink]
CompanyCostIndex=30
CompanyAltnRwyLength=6000
CompanyAltnILS=0

[GPWS]
GPWS_AltCallouts=1
GPWS_2500=0
GPWS_10=1
GPWS_50=2
GPWS_40=1
GPWS_30=1
GPWS_20=1
GPWS_MinimumsType=1
GPWS_AprMinimumsType=4
GPWS_WarnBankAngle=1
GPWS_TerrPeaksMode=1
GPWS_TerrUseCyan=0
GPWS_V1Callout=1
GPWS_AirspeedLowAural=1
GPWS_2500_RA=0
GPWS_100=1
GPWS_500=2
GPWS_400=0
GPWS_300=0
GPWS_200=0
GPWS_1000=1

[TCAS]
TCAS_ShowAllTraffic=1
TCAS_FilterRange=40
TCAS_FilterSeparation=2800

[Airframe]
Airstair=1
ShortFieldPackage=0
FlightTestPackage=0
SteelBrakePackage=0
DualBatteryPackage=1
Yoke CheckList L=1
Yoke CheckList R=1
HeadrestInstalled L=1
HeadrestInstalled R=1
ETOPS=0
DualCargoBottleSystem=0
SingleClassCabin=0
EyebrowWindows=0
SatcomAntenna=0
EFBInstalled=0
LED Exterior Lights=0
PIP Installed=0
Auto Probe Heat Installed=0
Auto Ignition Installed=0
TIOS Antenna Installed=1
6500 Cabin Altitude Installed=0
Fuel Cutoff New Style Installed=0
Pressurization Panel New Style Installed=1
MMR Panels Installed=0
Aux Fuel Config=0
Aft Aux Tanks=0
Fwd Aux Tanks=0
Yaw Damp Gauge Installed=0
Stby Instruments=1
HGSInstalled=1
HGS_AutoAIII=1
HGS_GSrefInPRI=1
Window Shades Installed=1
Flight Tablet Installed=1

[Units]
MetricWeightUnits=1

[EFB]
EFBWeightLbs=1
EFBTemperaturesInF=1
EFBWindSpeedKnots=1
EFBNearestInclPrecision=1
EFBNearestInclJetFuel=1
EFBDistanceFeet=1
EFBHeightFeet=1
EFBObstDistanceRefStart=1
EFBObstHeightRefStart=1
EFBRwyClrwyStpwy=0
EFBMinDatabaseRwyLength=5000
EFBMinNearestRwyLen=5000
